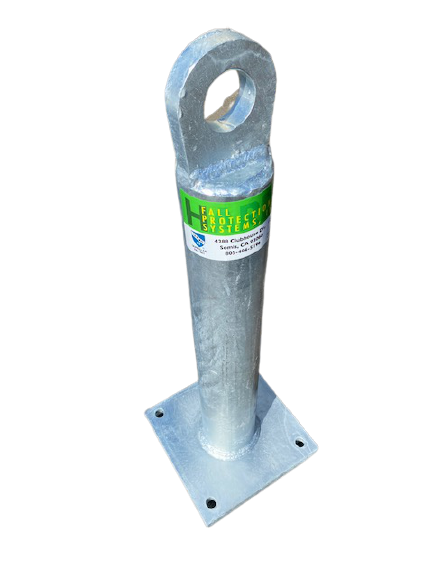

Hardy Tie Back Device

The Hardy Tie Back Device/Anchor Assembly, the ONLY roof tie-back system that is code approved (LA City included) and meets all California Code of Regulations.

Introducing the All NEW Hardy Saddle Tie Back Device

Available Products

(Custom Sizes Available. Call for Lead Time.)
MFG Part #
Product Description
Fastener Type & Size
Fasteners/Tie Back
Weight
MSRP
HTB16
16” Hardy Standard Tie Back
SDS Screw – 1/4″x 3″
24
95#
$618.75
HTB24
24” Hardy Standard Tie Back
SDS Screw – 1/4″x 3″
32
130#
$687.50
HTB32
32” Hardy Standard Tie Back
SDS Screw – 1/4″x 3″
40
150#
$775.00
HTB-S12
12” Hardy Saddle Tie Back
SDS Screw – 1/4″x 2-1/2″
32
65#
$497.50
HTB-S18
18” Hardy Saddle Tie Back
SDS Screw – 1/4″x 2-1/2″
40
70#
$531.25
HTB-S24
24” Hardy Saddle Tie Back
SDS Screw – 1/4″x 2-1/2″
52
75#
$562.50
HTB-CM
Hardy Cap Mount Tie Back
SDS Screw – 1/4″x 3″
24
135#
$737.50

— installation photos

Proudly Made in the U.S.A.
U.S. Patent No. 10,358,835 B2

the hardy tie back device

The ONLY Code-Approved Roof Tie Back Device/Anchor Assembly

Why Specify a Product with a Uniform Evaluation Report?

  • The Uniform Evaluation Report assures the code official that the product has undergone the highest levels of third-party scrutiny available.
  • It ensures that the product complies with the Current Building Code.
  • Uniform Evaluation Reports provide uniformity in product certifications.
  • The Uniform Evaluation Reports document that the product undergoes IAPMO’s continuous compliance inspection program.
    • Initial Manufacturing Audit
    • Manufacturing Inspection Audits Twice a Year
    • All inspections performed by RADCO Testing – https://www.radcoinc.com/

These quality assurance evaluations ensure continued compliance and consistency of production.

IAPMO ER No. 461 | City of Los Angeles Building Code (LABC) | City of Los Angeles Residential Code (LARC)

Hardy Tieback Fall Protection Device Showing Load Vectors
iapmo certified roof anchor

Includes Post Installation Pull Testing

hardy tieback anchor saddle
iapmo certified roof anchor

New hardysaddle tie back device

Introducing the NEW Hardy Saddle Tie Back Anchor, HTB-S

The only roof tie back/anchor tested to be installed on a single beam, double truss or joist application system

  • Requires half of the structural framing members.
  • Significantly reduces labor costs.
  • No Engineering Required No penetrations of the roof membrane.
  • NO POTENTIAL LEAKS Completely Galvanized Assembly Simple installation using SDS screws.
  • NO DRILLING.
  • LA City Fabricators License

IAPMO ER No. 461 | City of Los Angeles Building Code (LABC) | City of Los Angeles Residential Code (LARC)

Approved installation using SDS Structural Screws | Includes Post Installation Pull Testing

srg-logo_onwhite

Sales & Specification

Structural Resource Group

Mark Scambray
Email: Mark@srgspec.com

949-636-1255

Hardy-logo_onwhite

Technical Inquiries

Hardy Fall Protection Systems, Inc.

Gary Hardy
Email: GaryLHardy1@gmail.com

805-404-5196

What our Clients Say about Our Products

"There is really no other option. I try to get Hardy Tie Backs on every job."

Robby Proffer
Proffer Construction, Inc
Thursday, August 31, 2017

"We would never install any framing hardware that didn't have a code approval. Why are tie-backs any different? Hardy Tie Backs are the way to go."

Darrell Allen
Allen Construction
Monday, January 3, 2018

"We like the Hardy Tie Back system. We charge at least $100 extra per tie-back just for labor to install other systems." -

Jane Bill
A2 Railla Development, Inc.
Thursday, August 31, 2019

about our tie back device

The Hardy Tie Back Device & Anchor Assembly

The only roof tie-back system that is code approved (LA City included) and meets all California Code of Regulations

• Code Approved – IAPMO ER-461
• Los Angeles City Approved
• Full Scale Testing
• Simple installation using SDS screws.
   NO DRILLING.
• No penetration of roof membrane.
• NO POTENTIAL LEAKS
• Completely Galvanized Assembly

FAQ

Frequently Asked Questions and Answers About the Hardy Tie Back Fall Protection System

Every building constructed 3 stories or 36 feet or more in height, shall have roof tie-backs or other permanent devices installed at the roof level for the purpose of securing or tying back suspended scaffold hooks or clamps and safety lines.
California Code of Regulations Title 8 Section 3291 (f)(1).

Yes.

  1. Roof tie-backs are not required on buildings employing other acceptable means of permanently installed roof top maintenance systems specified in this Article or Article 6.
  2. Roof tie-backs are not required on buildings constructed up to 4 stories or 48 feet in height when building maintenance can be accomplished using extension tools, ladders, approved ground equipment such as scaffolds, or aerial devices designed and used for positioning personnel.

California Code of Regulations Title 8 Section 3291 (f)(1).
These exceptions are left up to interpretation by the OSHA inspector. It is our understanding that tie-backs will be required on buildings higher than 3 stories and below 48 feet high if the use of ladders, scaffolds, or other aerial devices are not possible because of the building location and site conditions. All buildings higher than 48 feet will require a tie-back system.

Such devices should be spaced at approximately 12-foot intervals; however, the spacing shall depend primarily on the availability of roof structural framing members of sufficient strength to safely carry applied loads. Tie-backs may be installed in structural parapets that are of adequate strength to sustain applied loads, but, placement shall be as close to the roof level as practicable.
California Code of Regulations Title 8 Section 3291 (f)(2).

The code does not specifically specify the distance from the edge of the building. CAL/OSHA would like to see the tie backs placed 6’ – 8’ from the edge of the roof but if mechanical equipment or other obstructions prevent this placement the tie back may be placed closer to the edge of the building.

Yes. All completed building maintenance equipment installations shall be  inspected and tested in the field before being placed in initial service to determine that all parts of the  installation conform to applicable requirements of this article, and that all safety and operating equipment is functioning as required.
California Code of Regulations Title 8 Section 3296 (a).

Roof tie-backs shall be tested to no more than 50 percent of their rated capacity. For example, a roof tie-back with a rated capacity of 5000 pounds shall not be tested in excess of 2500 pounds.
California Code of Regulations Title 8 Section 3296 (b)(4)(B).

Assembly and anchorage provisions adequate to sustain a 5000 pound load applied in any direction without permanent deformation.
California Code of Regulations Title 8 Section 3291 (f)(2)(C).

Not for unscheduled maintenance.

Owners of buildings 36 feet or more in height shall have an Operating Procedures Outline Sheet (OPOS) where one or more of the following conditions apply to such buildings:

  • A building does not have an established window cleaning system or procedure meeting the requirements specified in Articles 5 & 6 – California Code of Regulations Title 8 Section 3282(p)(1)(C) 1A.
  • A building has extreme architectural features, which require the use of complex rigging/equipment or a building uses rigging, or equipment not covered by California Code of Regulations Title 8 Section 3282(p)(1)(C) 1C].
  • When a boatswain’s chair or controlled descent apparatus is permitted for window cleaning in accordance with California Code of Regulations Title 8 Section 3286(a)(1).
  • When the use of counter weighted outrigger beams is permitted for window cleaning in accordance with California Code of Regulations Title 8 Section 3291 (d)(2).&

Warranty

Hardy Tie Back Lifetime Warranty

All Hardy Fall Protection Systems, Inc. product are covered by our limited lifetime warranty.
